Crusher Parts


Deliver a crushing blow to wear

Our crusher parts are made from high performance materials that stand the test of time in extreme situations. We can custom design parts that offer increased performance using ultra heavy duty 24% Manganese and 3% Chrome.




Cone Crushers

We offer a wide range of concaves, mantles, and supplemental parts for all brands of cone crushers.

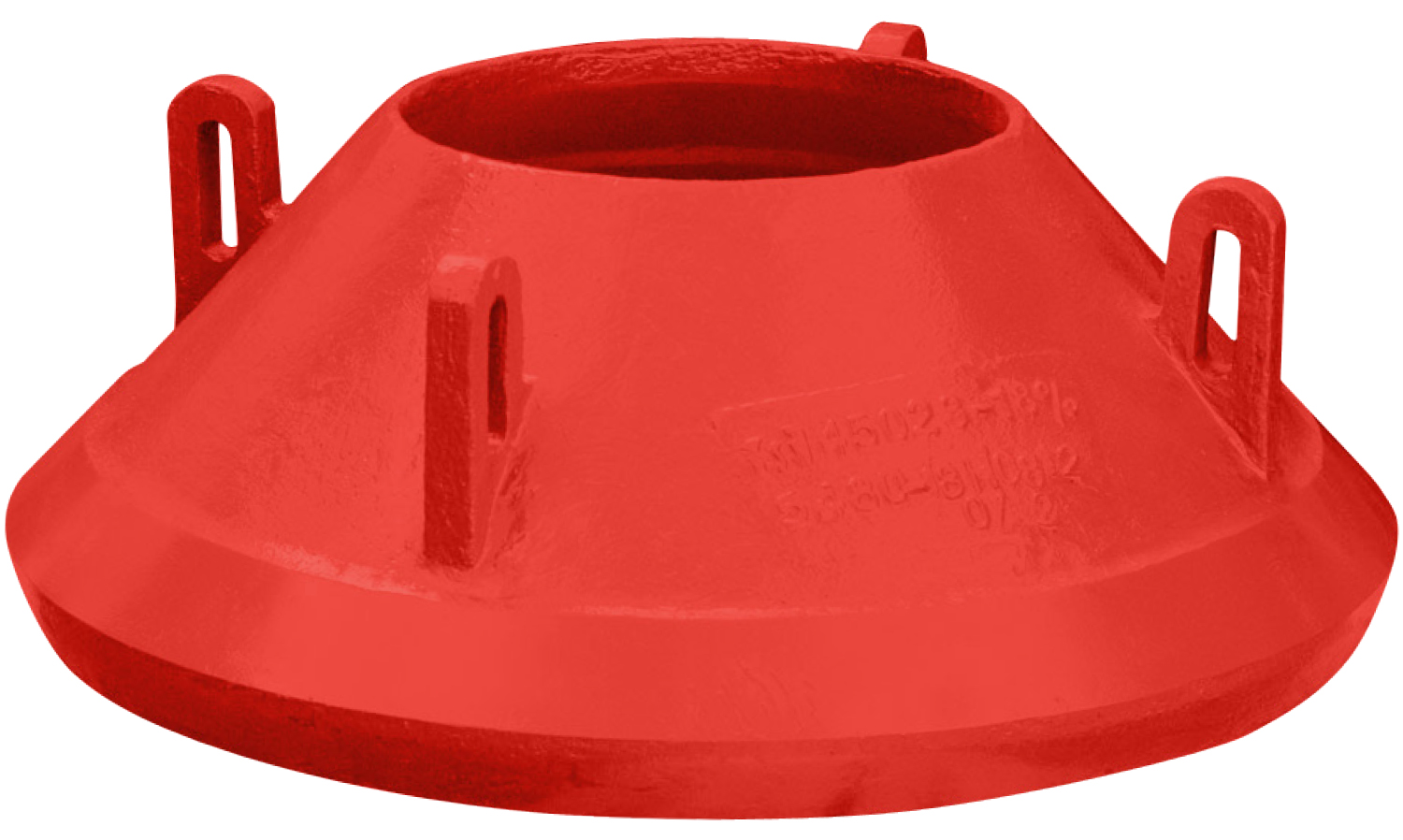

Our crusher cones are cast from 18% Manganese 2% Chrome iron. We also custom design cones that offer increased performance using ultra heavy duty 21% Manganese and 2% Chrome iron, and 24% Manganese and 3% Chrome iron.





Jaw Crushers

We offer a wide range of jaws, cheek plates and supplemental parts for all brands of jaw crusher.

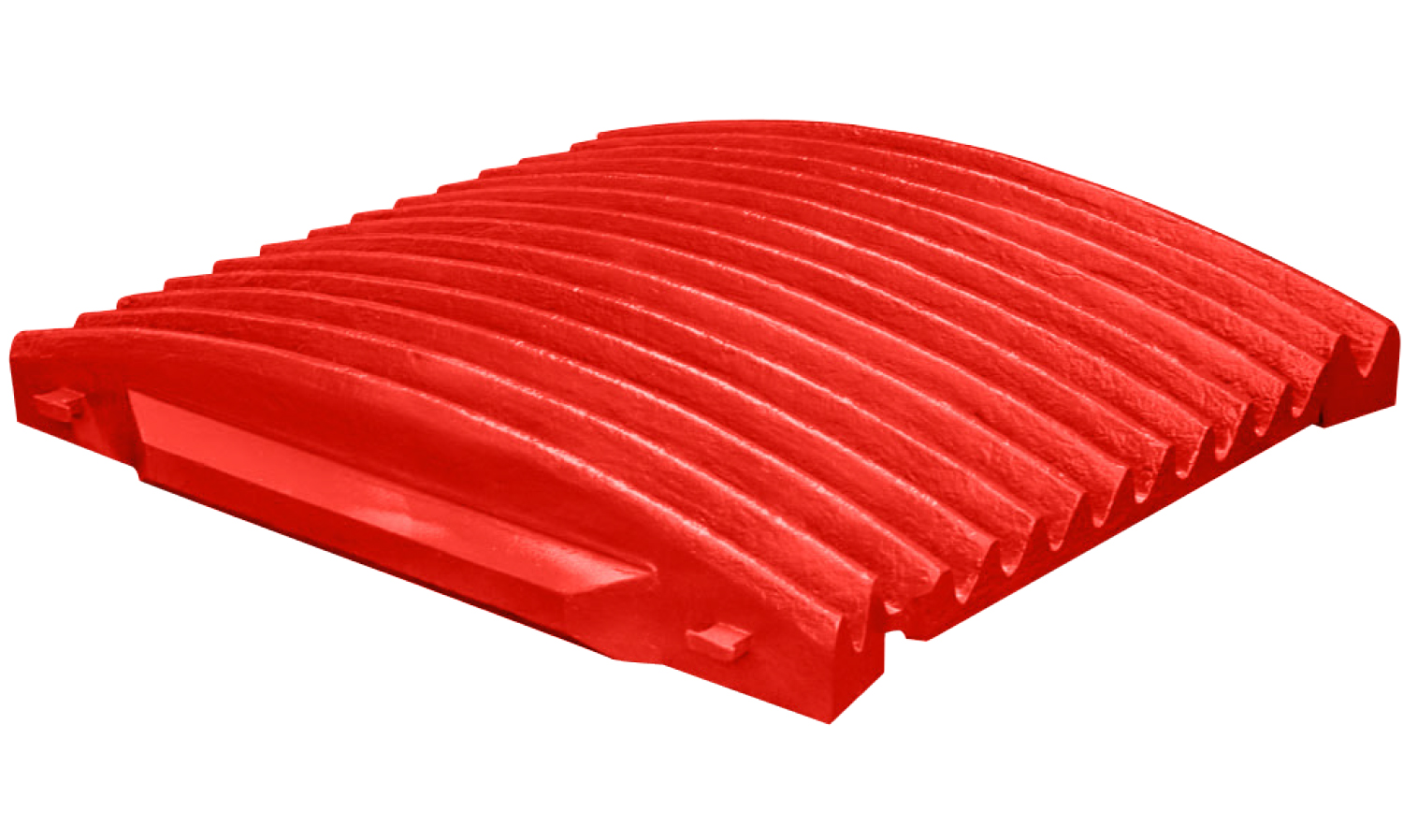

Our cast cheek plates are made  from 13% Manganese and 2% chrome iron. Our crusher jaws are cast from 18% Manganese 3% Chrome iron. We also custom design jaws that offer increased performance using ultra heavy duty 21% Manganese and 2% Chrome iron, and 24% Manganese and 3% Chrome iron.

  • We offer a wide variety of tooth profiles and surface shapes. Get in touch for expert advice on the jaw styles that best suit your application.
  • We have access to the full range of crusher jaws for every machine. If you want it — we can get it.
  • The fitting surfaces on all of our jaws are machine finished to ensure the best possible fit.




Hammer Mills

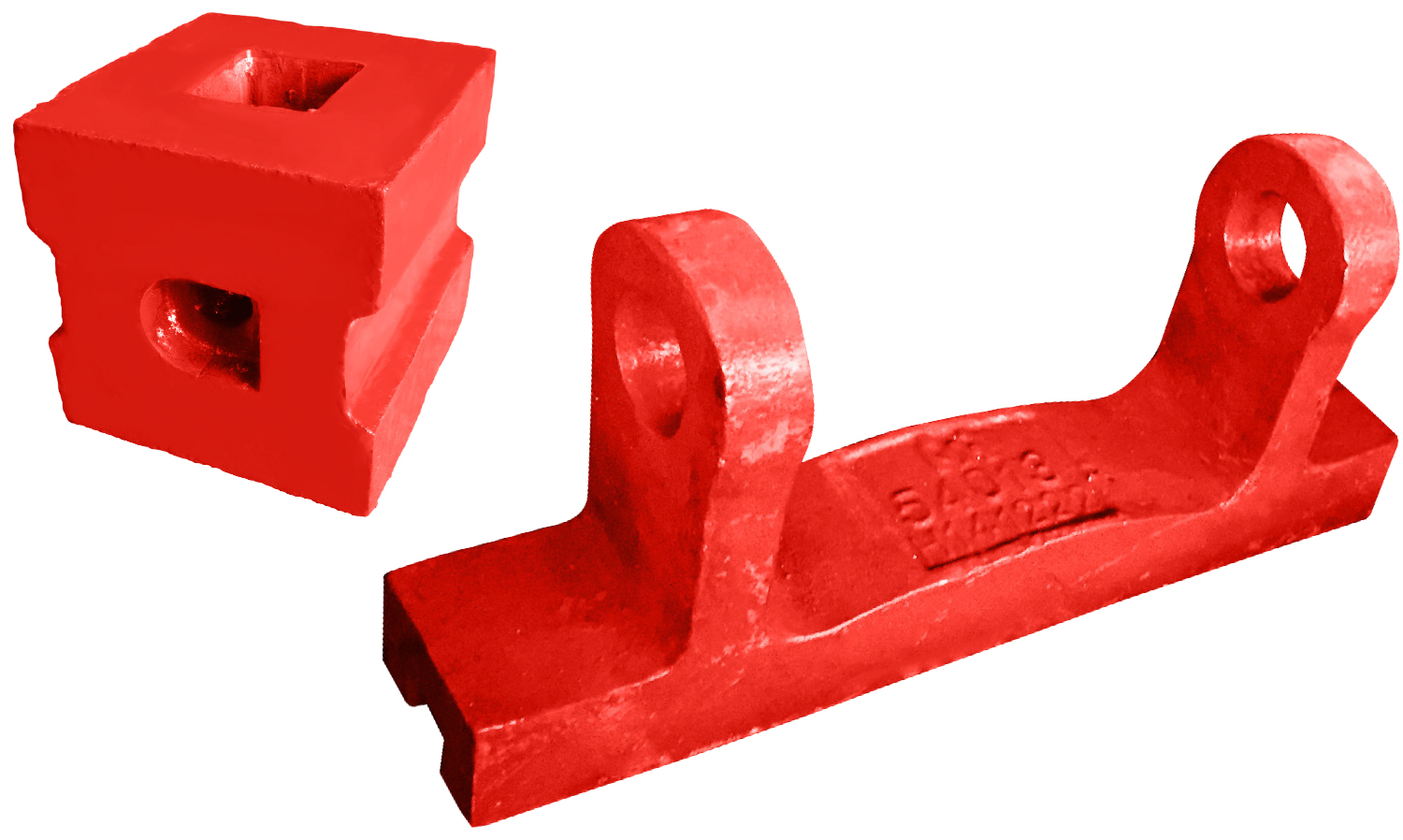

We offer a wide range of parts for A&B and Kumbee hammer mills.

As well as cast parts we also custom make a full range of Hardox wear parts for superior wear life and reduced downtime.





Horizontal Shaft Impactors

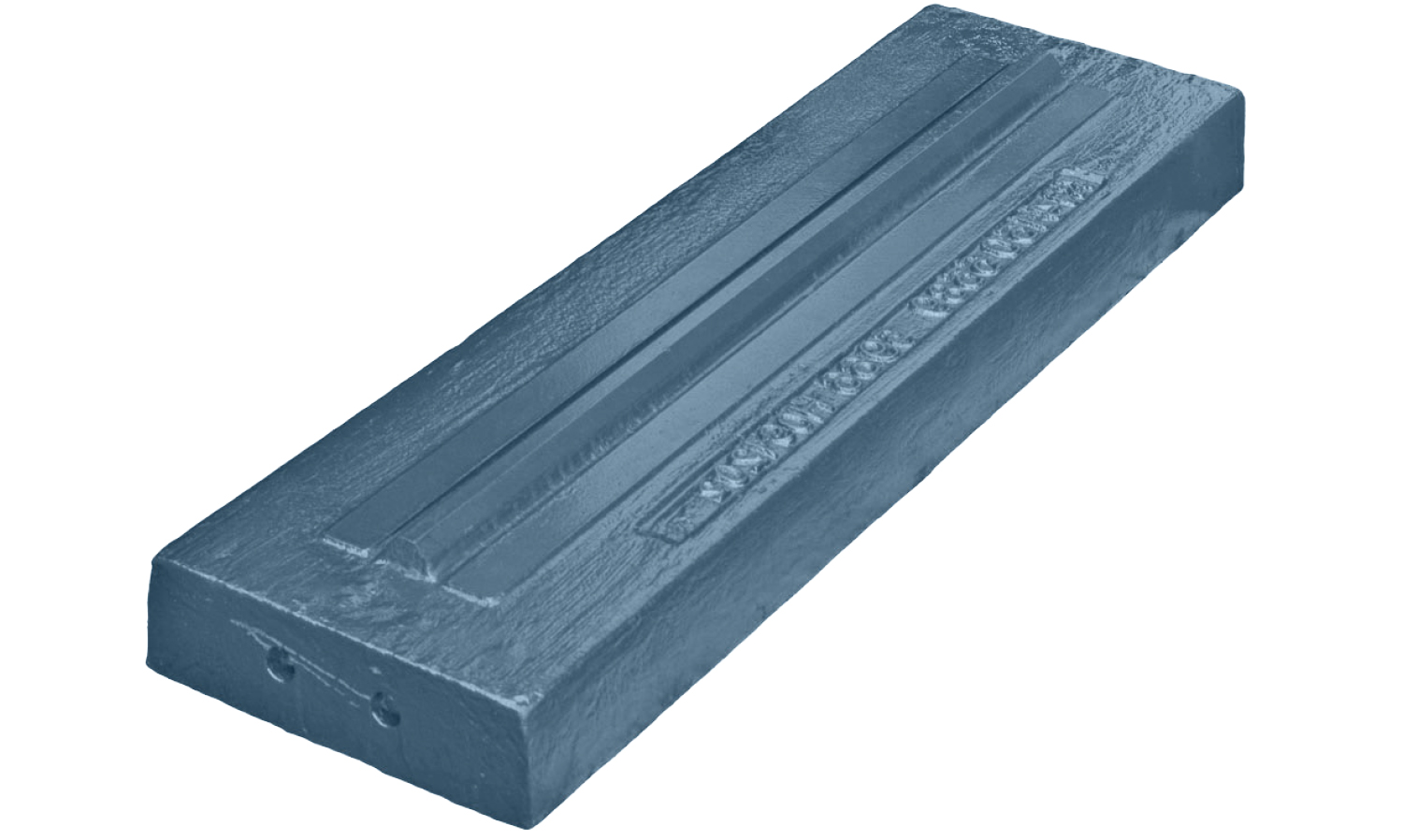

Our HSI bars are cast in high chrome in the USA.

We offer HSI blow bars in a range of material hardnesses. Ceramic composite, 25% chrome iron and 27% chrome iron. Get in touch for expert advice on a selection that best suits your application.

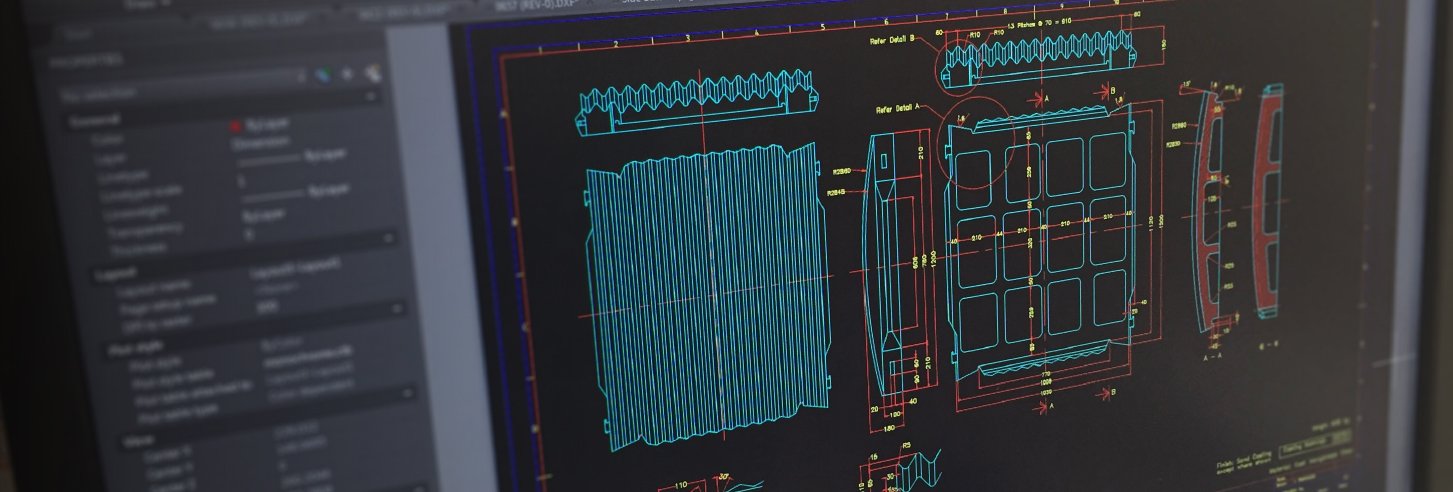

Crusher Re-Engineering

Case Study

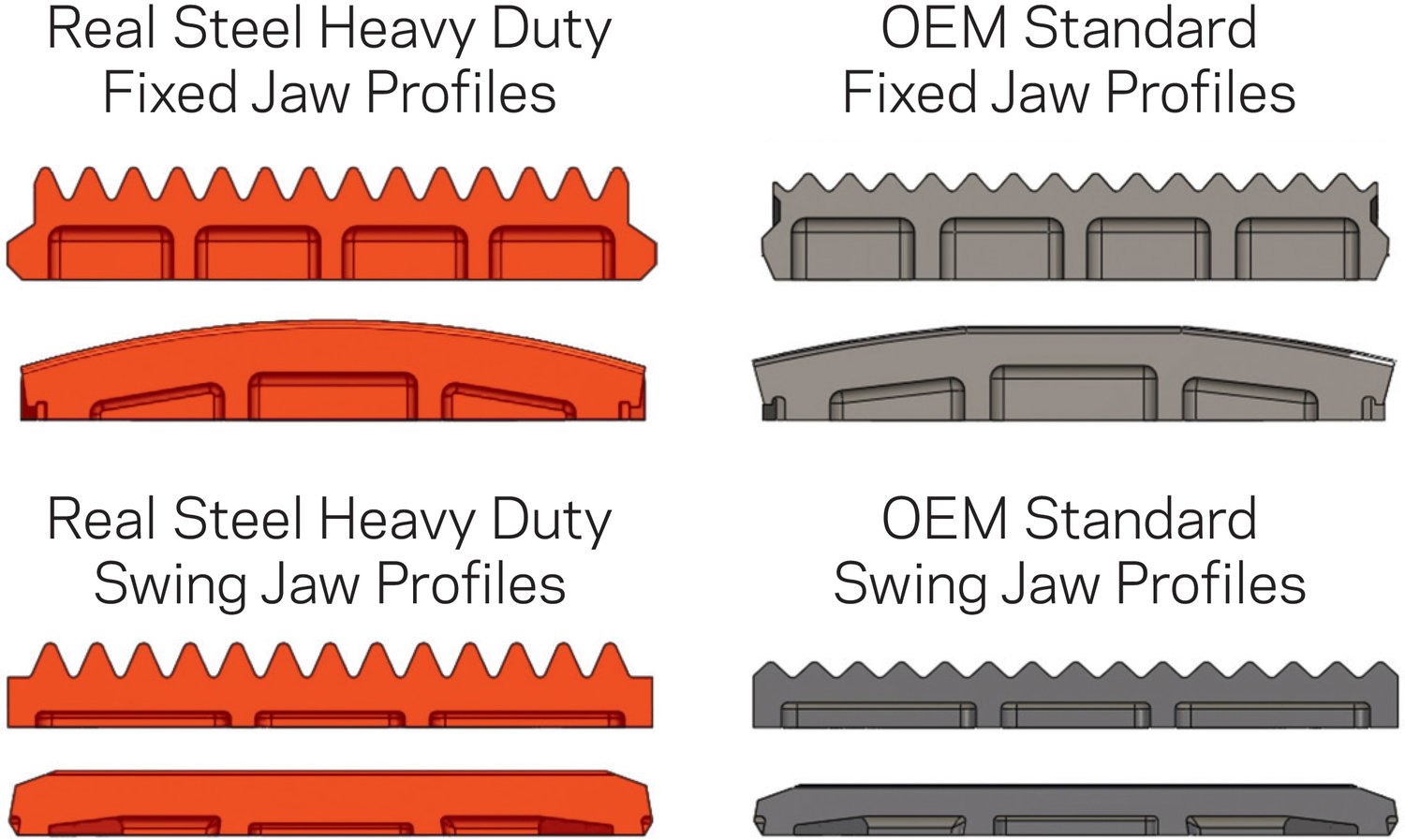

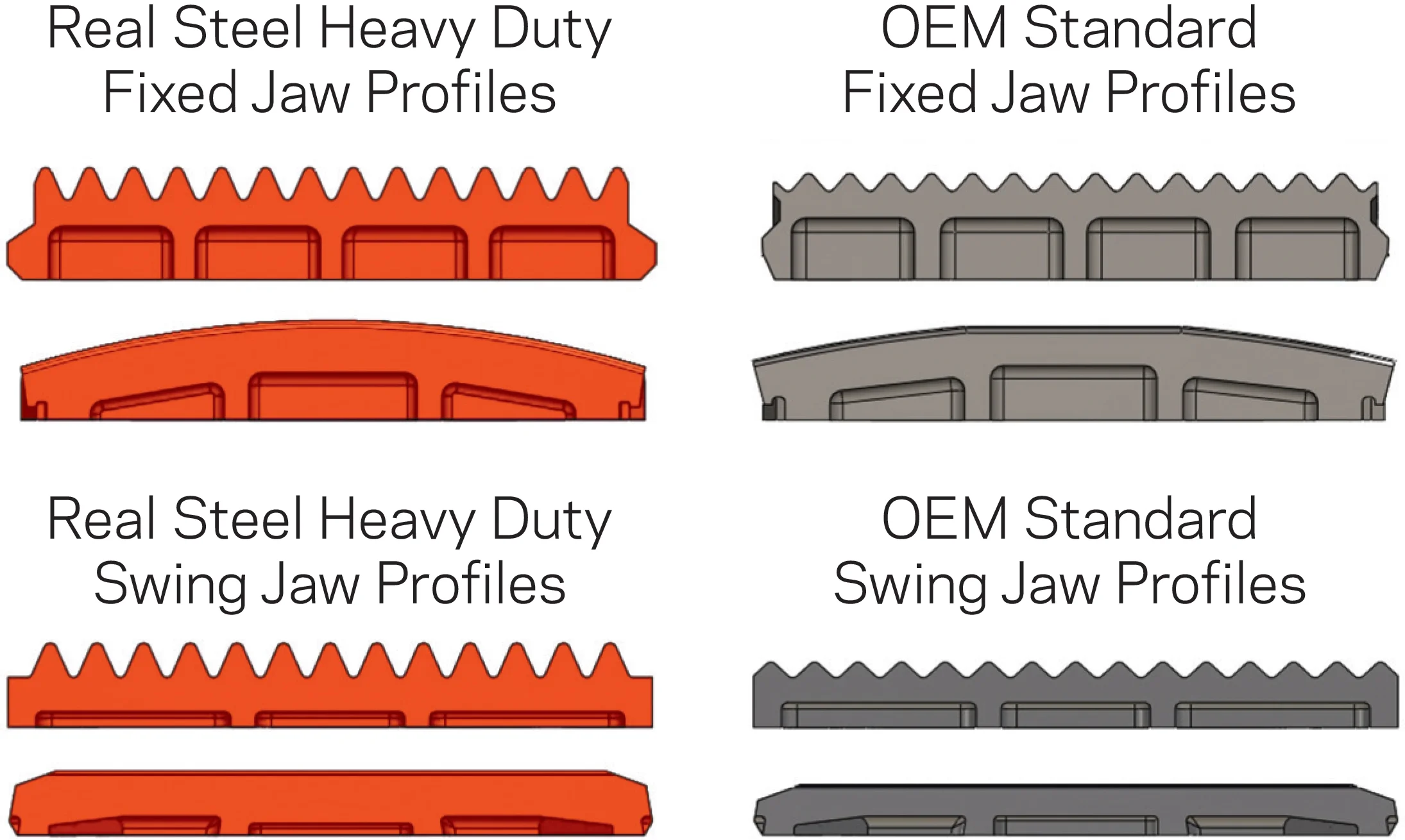

Komatsu BR380 Heavy Duty Jaws





Increased Performance

Our improved Komatsu BR380 jaw design crushes more efficiently and wears more evenly for a dramatically reduced cost per tonne and longer life over the standard OEM jaws. More material in wear areas leads to a higher ratio of usable material with less wastage.

Reduced downtime

Crusher jaw changeouts can take a full day. The longer lifespan of the Real Steel Heavy Duty jaws means significantly reduced downtime and improved machine availability.


We'll visit to measure up your parts and give expert advice. Give us a call or find your local sales manager below.
