Capabilities

Design Team.jpg

WE design your parts to fit like a glove

Our large team of tertiary-qualified designers uses the latest software to design fabricated wear parts, structures and 3D forming casting patterns. We also custom make one-off parts for a range of applications.

experts will come to you Nationwide

We've got experts on the ground across New Zealand. Get in touch so we can visit and spec exactly what you need.


We have world class press brakes, amongst the biggest in NZ

Yawei Press Brake 8.2m

  • Pressing Force: up to 1000 tonnes
  • Length: 8.2m
  • CNC: 5-axis
  • Software: Desktop simulation
  • Tooling: Various custom tools

Yawei Press Brake 6.2m

  • Pressing Force: up to 630 tonnes
  • Length: 6.2m
  • CNC: 7-axis
  • Software: Desktop simulation
  • Tooling: Various custom tools

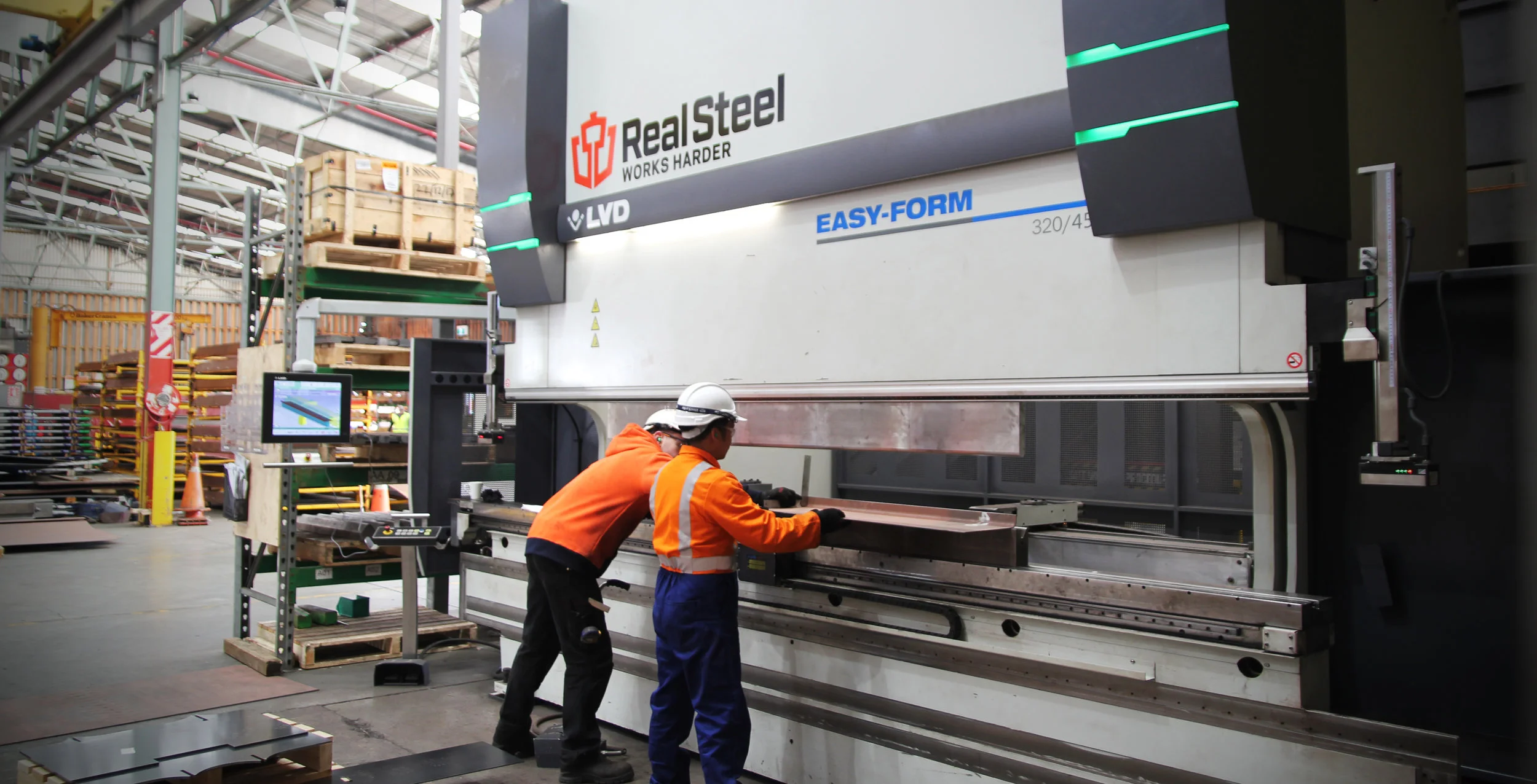

LVD Press Brake 4.5m

  • Pressing Force: up to 350 tonnes
  • Length: 4.5m
  • CNC: crowning V-axis standard
  • Patented Easy-Form® in process angle monitoring and correction system
  • Bending parameters automatically controlled by LVD's unique 'intelligent' learning database
  • Bend accuracy to +/- 0.3 degrees

We have the equipment to cut the hardest steel, accurately

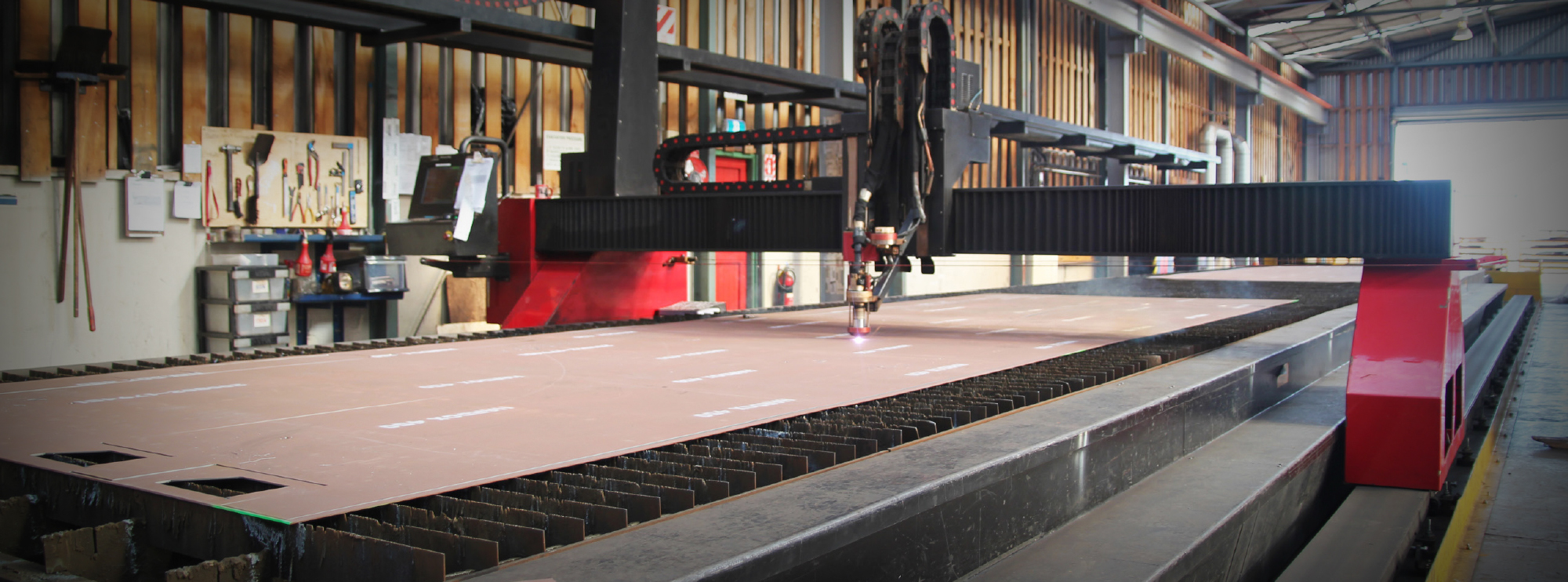

Kinetic K2500 Profile Cutter

  • Plasma Cutting: 400A up to 60mm
  • Oxyfuel Cutting: 60mm–200mm
  • Marking: various marking systems
  • Cutting Bed Size: 17m x 3.2m
  • Software: Integrated scheduling and nesting using PrimeCut NE
  • The K2500 makes short work of general profile cutting



Kinetic K5000 Profile Cutting, Drilling, Milling

  • Plasma Cutting: 400A up to 60mm
  • Oxyfuel Cutting: 60mm–200mm
  • Marking: various marking systems
  • Spindle: High-speed 48HP (30kW) with through-spindle coolant
  • Tools: 24-tool automatic changer
  • Software: Integrated scheduling and nesting using PrimeCut NE
  • Drill, tap, counterbore, countersink

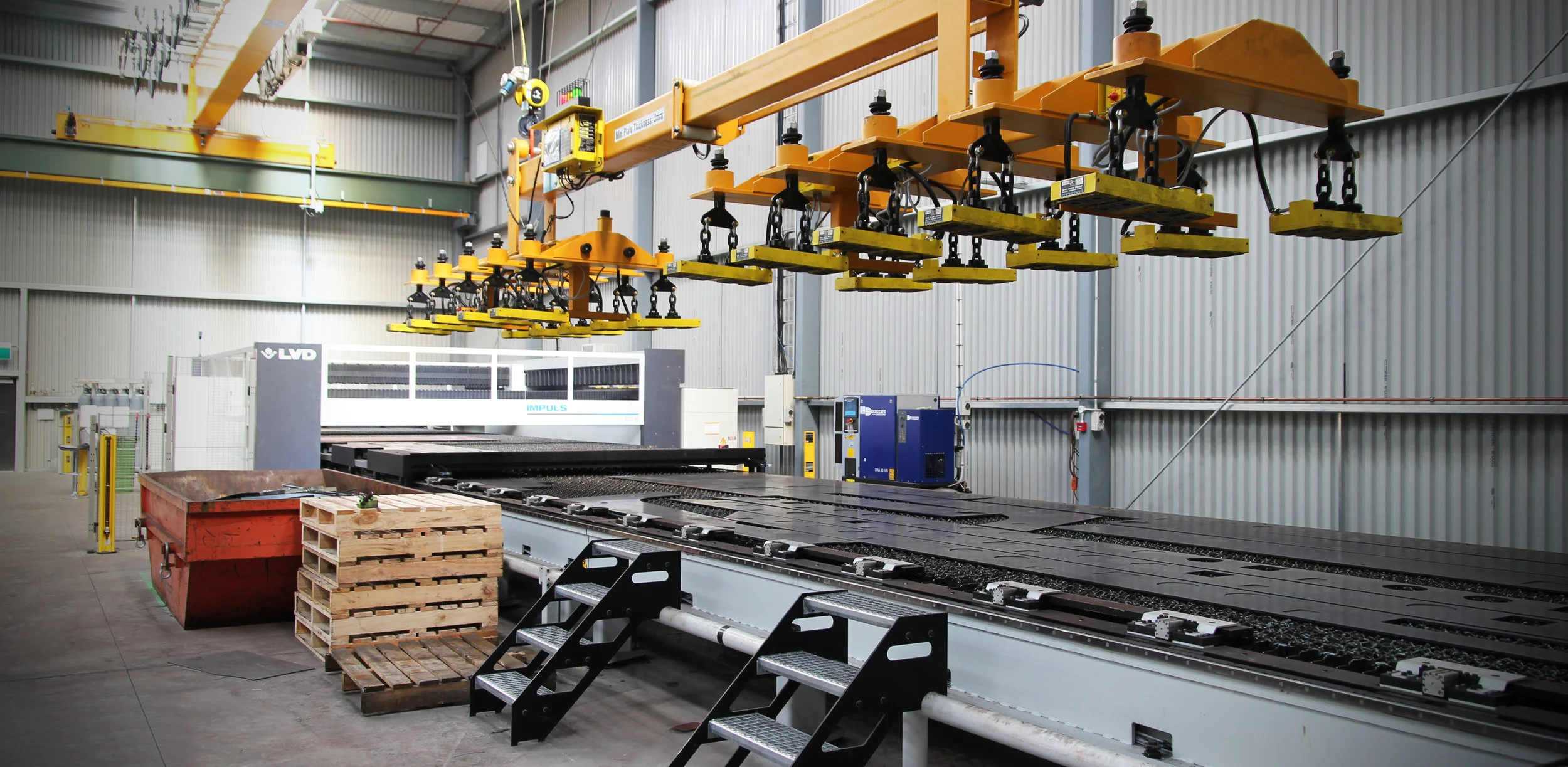

LVD IMPULS Laser

  • Maximum sheet size: 12m x 3m
  • Material thickness up to 25 mm
  • Drill hole accuracy and consistency
  • Fully programmable Z-axis for processing pre-formed parts
  • Constant beam length system assures fast, consistent cutting over the entire working area
  • Capacitive height sensing for high quality cutting results
  • Ideal for long profiles
  • Software: CADMAN-L programming software

We make sure our products arrive to you in pristine condition

Deburred to save you time

  • Deburring and edge rounding of parts
  • Processes both sides of the parts simultaneously
  • Edge rounding on interior and exterior contours
  • Can process long profiles up to 10m

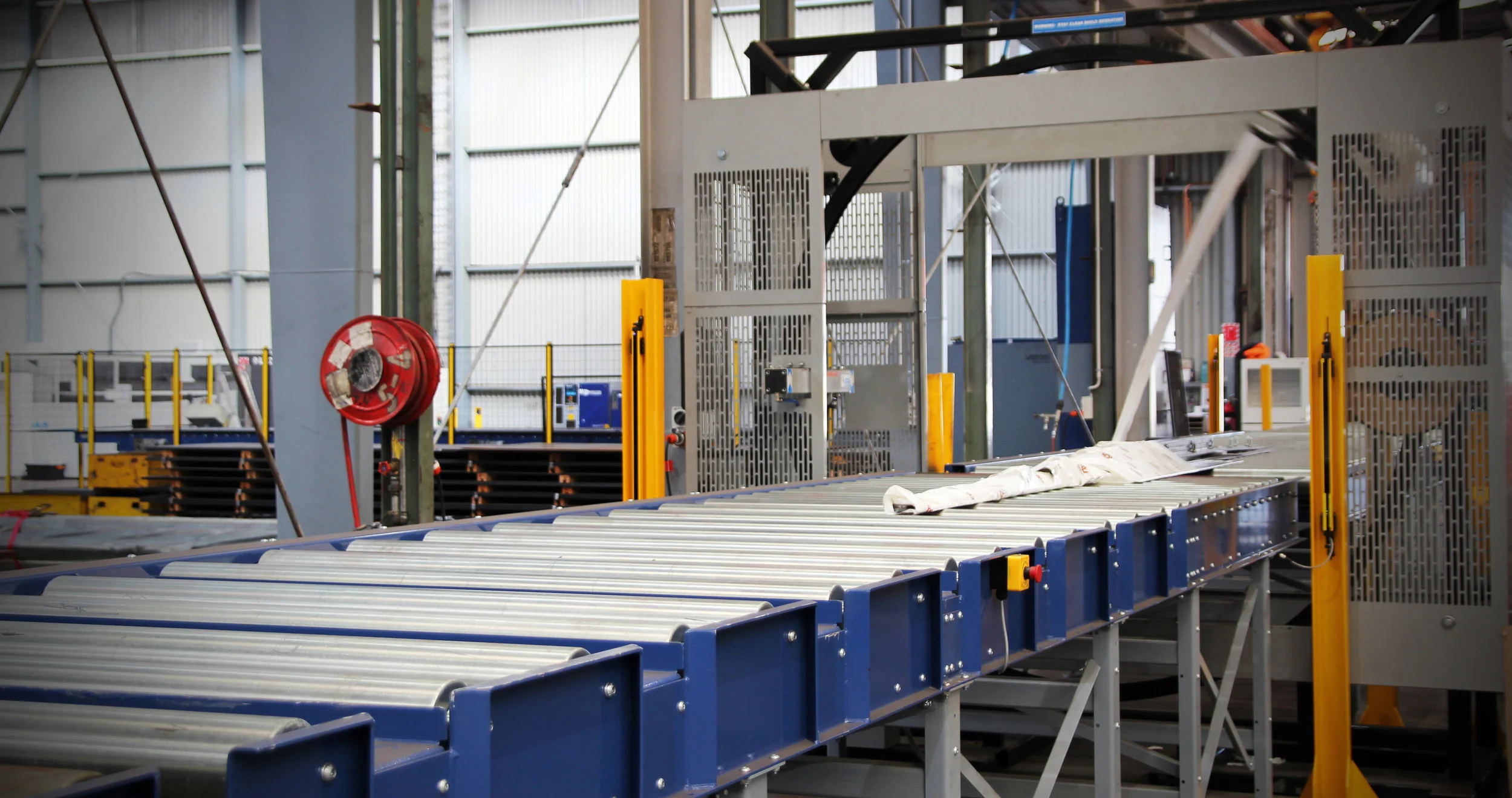

Automated wrapping line

  • Orbital technology
  • Rust inhibiting wrap
  • Reduces cleanup time

Get in touch for a free Real Steel Technical Manual. It contains everything you need to know about our machines and how to work with our steel.
